GroundShield MaxLoad 100 Ground Protection Mat
£225.00 incl. VAT (£187.50 excl. VAT)
- Large 123 x 243cm module size offering 2.99m² coverage per mat
- Dual-sided 6-bar chequered plate design for high-traction pedestrian and machinery safety
- 100-tonne load rating engineered to support heavy plant, tracked excavators, and demolition equipment
- Disability-friendly surface design suitable for wheelchair and wheeled equipment access

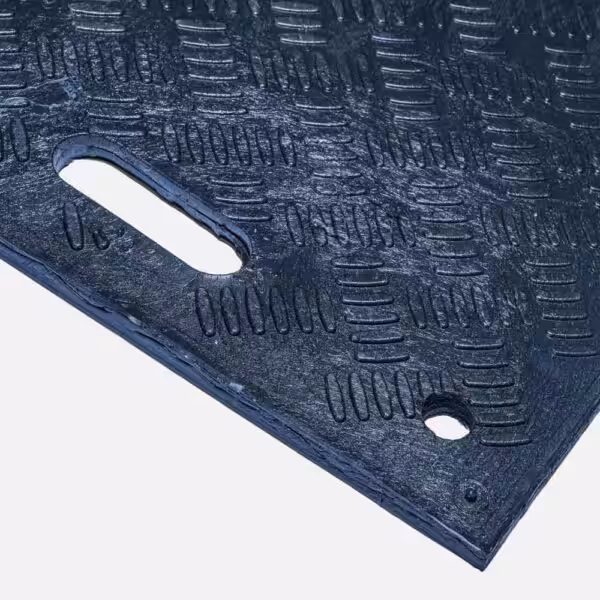

- Built-in corner & side connector holes for 2-way/4-way metal link options or heavy-duty cable ties
- 44kg weight with integrated handholds for stable positioning and efficient site handling
- Extreme compression resistance (>58 MPa) and high impact durability for demanding site environments
- 95% recycled PVC construction that is REACH compliant, UV stable, and chemical resistant

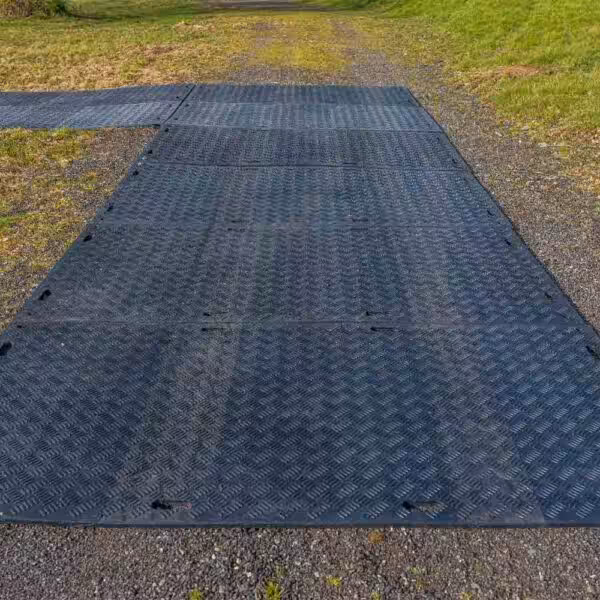

Protect driveways, lawns, and site access routes with a heavy-duty, ultra-durable ground protection mat. Designed for extreme loads, heavy plant machinery, and pedestrian access, the GroundShield MaxLoad 100 distributes load weights effectively to prevent rutting, turf damage, and surface cracking across soft or sensitive ground.
Key Features & Technical Advantages
- 100-Tonne Load Support: Engineered to withstand weight capacities of up to 100 tonnes, making it ideal for heavy plant machinery, tracked diggers, and site vehicles.
- Dual-Sided Anti-Slip Surface: Features a 6-bar chequered plate pattern on both sides to provide exceptional non-slip traction for machinery, vehicles, and pedestrians.
- Durable Recycled PVC Construction: Manufactured from 95% recycled PVC that will not rot, crack, or absorb water, offering exceptional long-term durability.

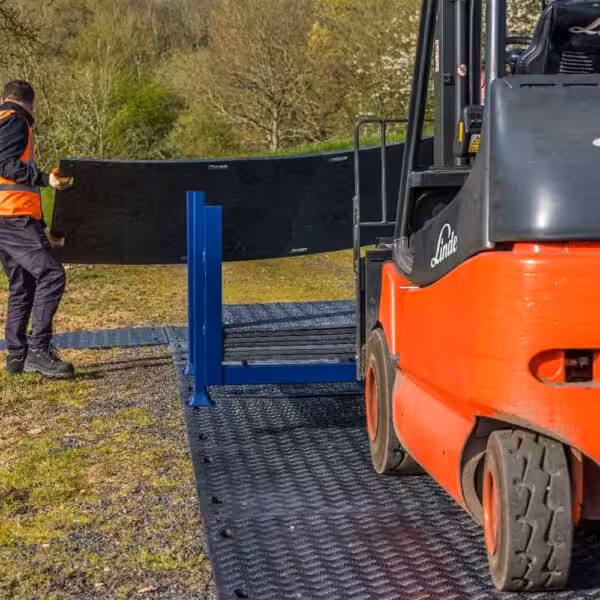

- Integrated Handholds: Features built-in handholds for fast layout, efficient manual positioning, and straightforward relocation across site areas.

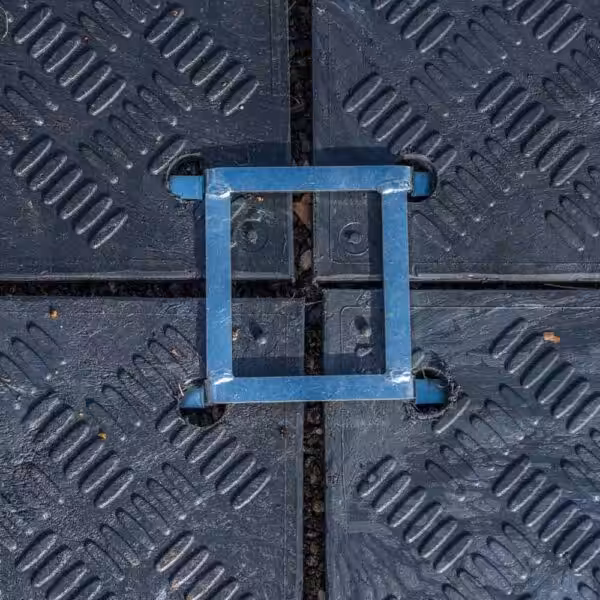

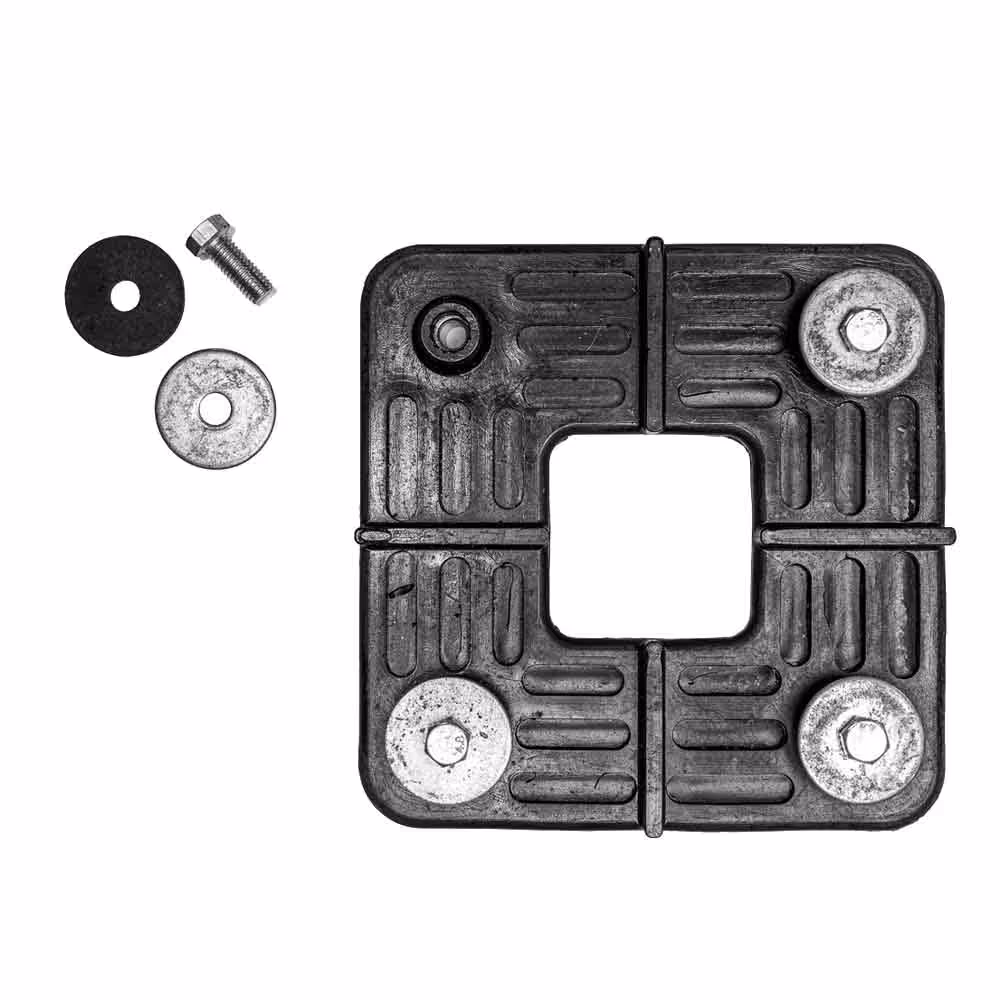

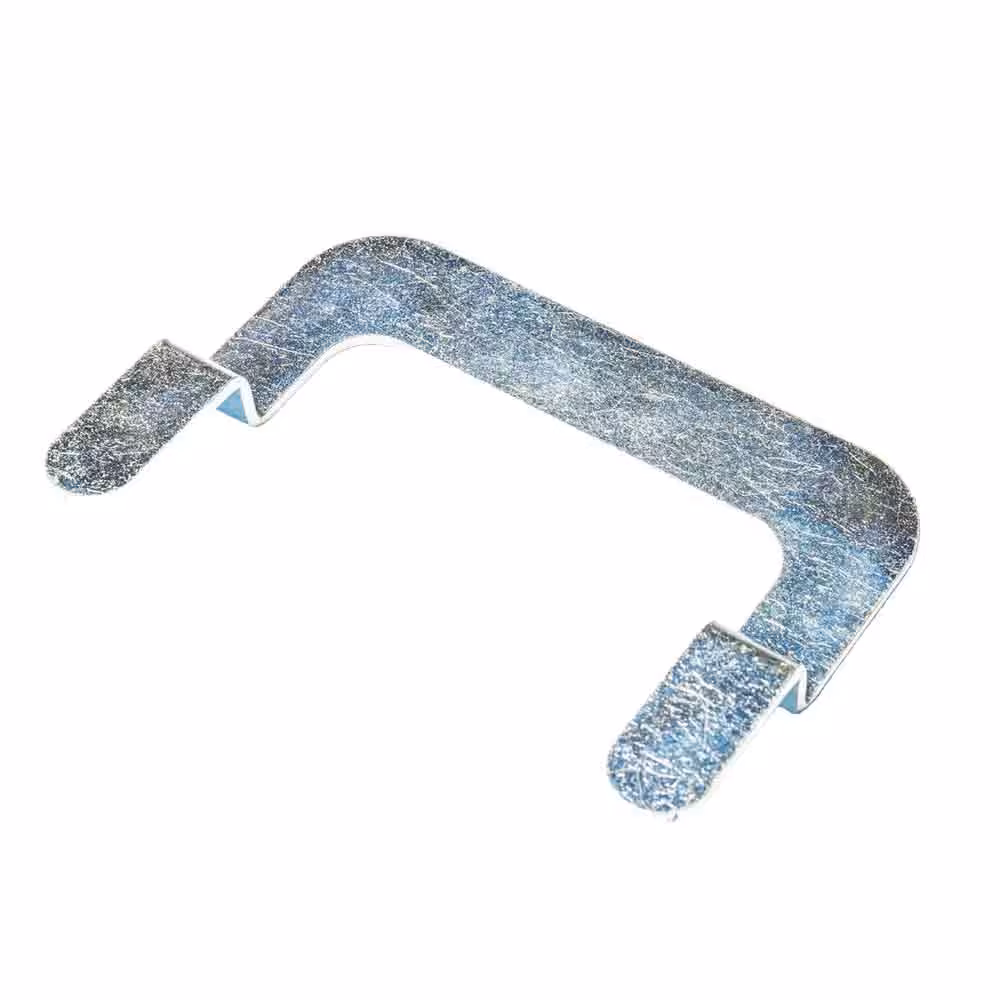

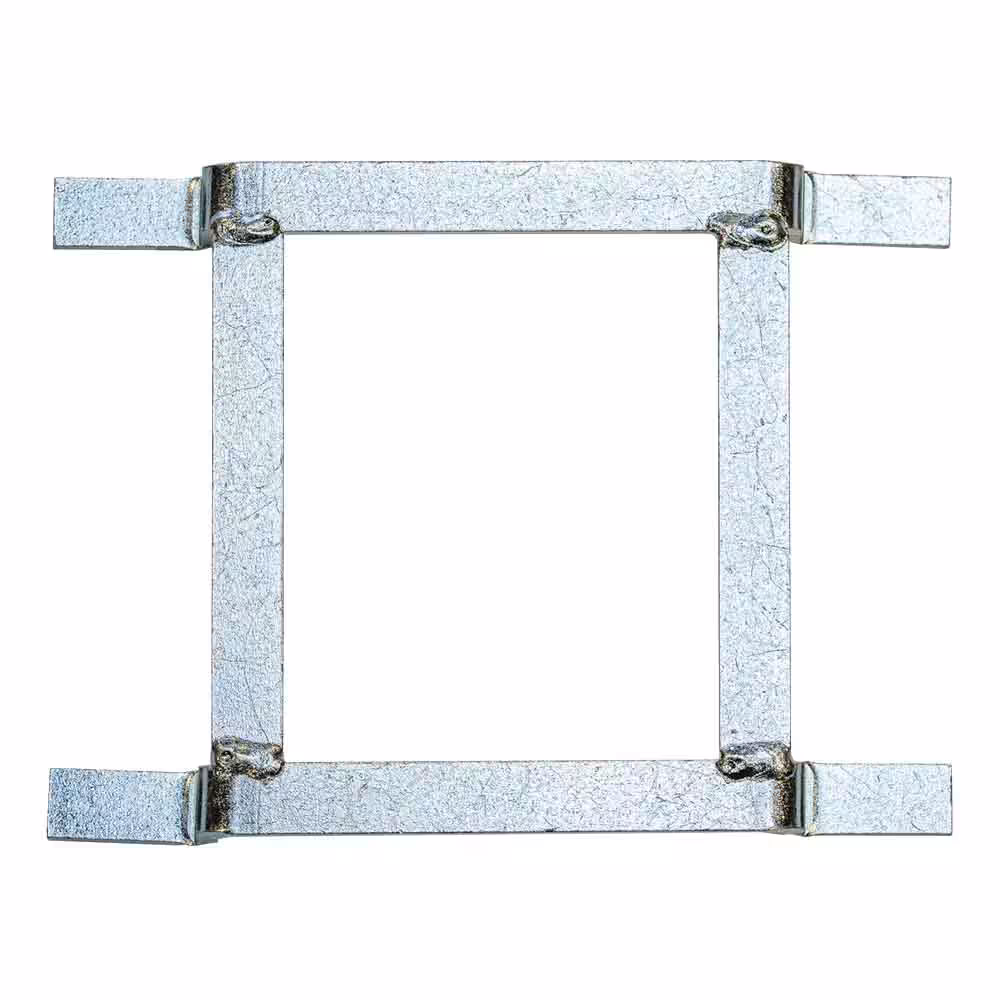

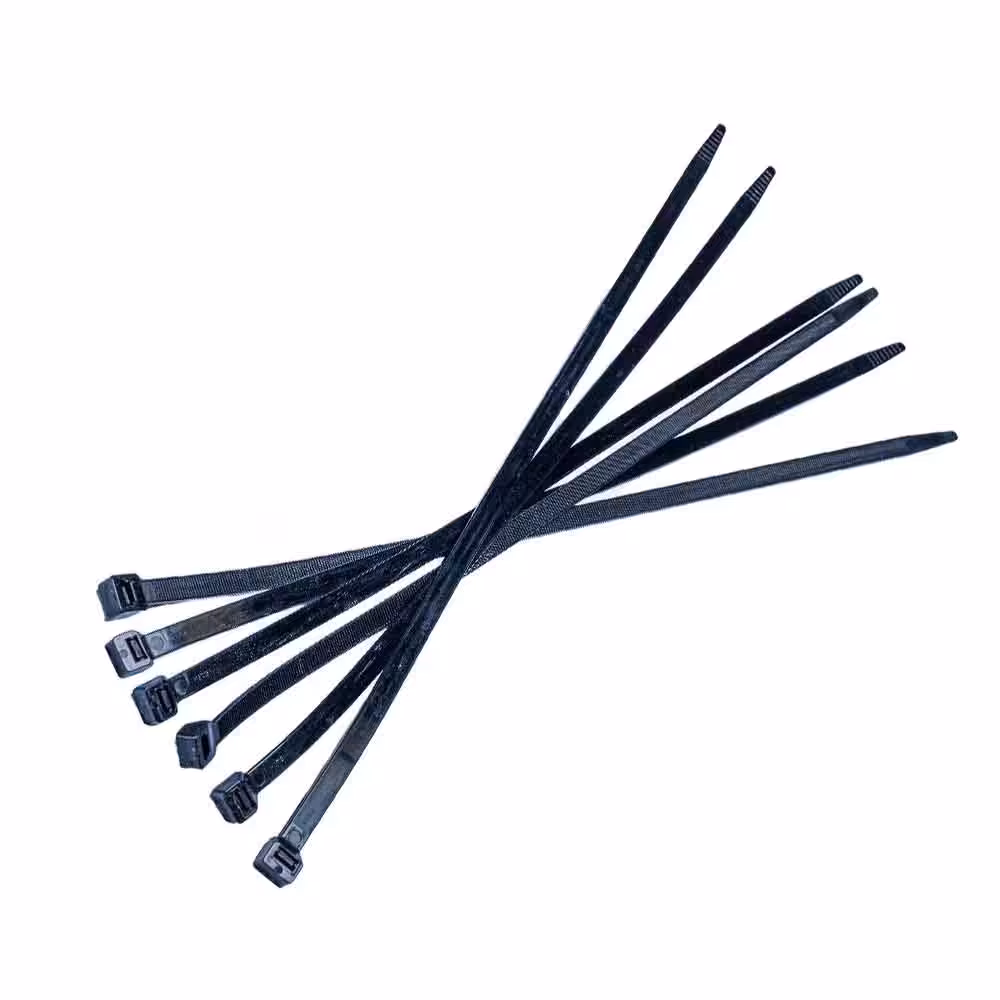

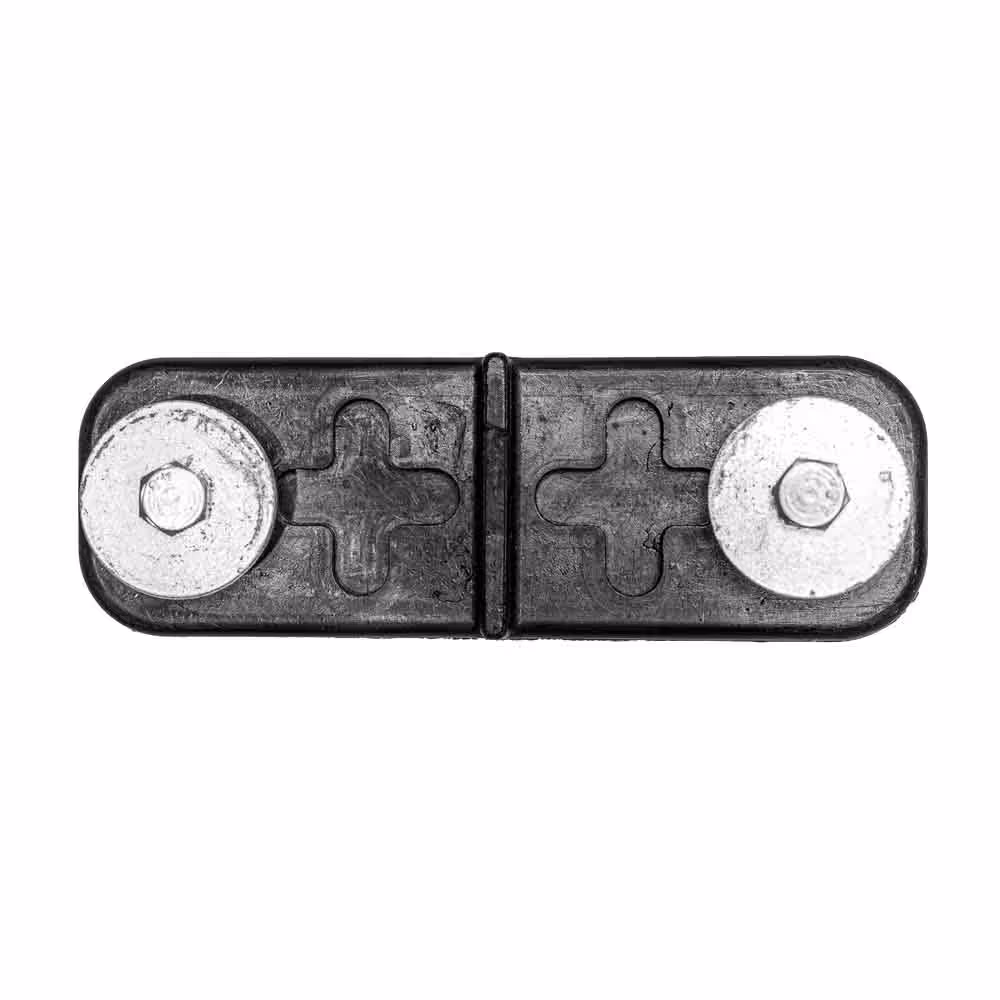

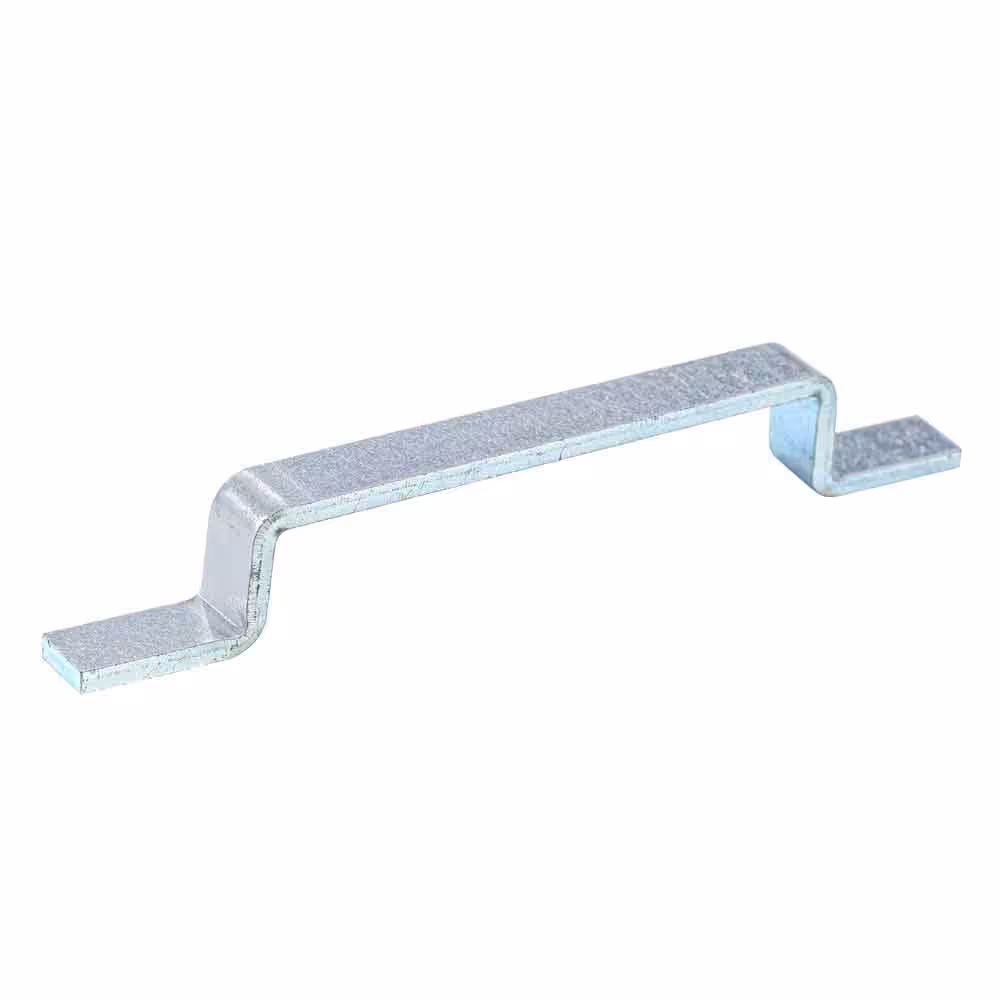

- Versatile Connection Options: Easily joined together using 2-way or 4-way connectors (Standard or Galvanised)—or secured quickly with heavy-duty cable ties for temporary layouts.

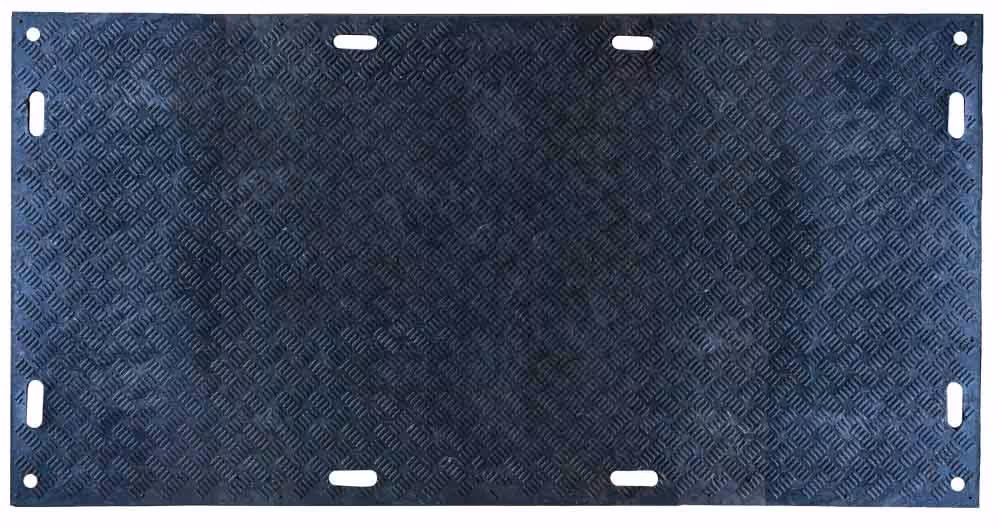

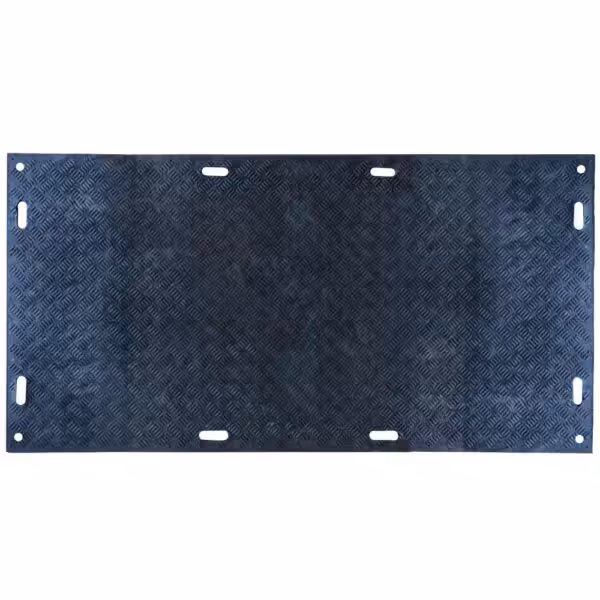

- Large 1.23m x 2.43m Sheet Size: Each mat provides nearly 3m² (2.99m²) of instant ground protection, allowing you to cover extensive surface areas rapidly.
- Coverage Calculator: Each tile covers 2.99m² (123cm x 243cm). Simply divide your total square meterage by 2.99 to calculate the exact number of mats needed.
Ideal Applications
- Civil Engineering & Construction Sites: Create temporary haul roads, site compounds, crane staging pads, and heavy machinery pathways.

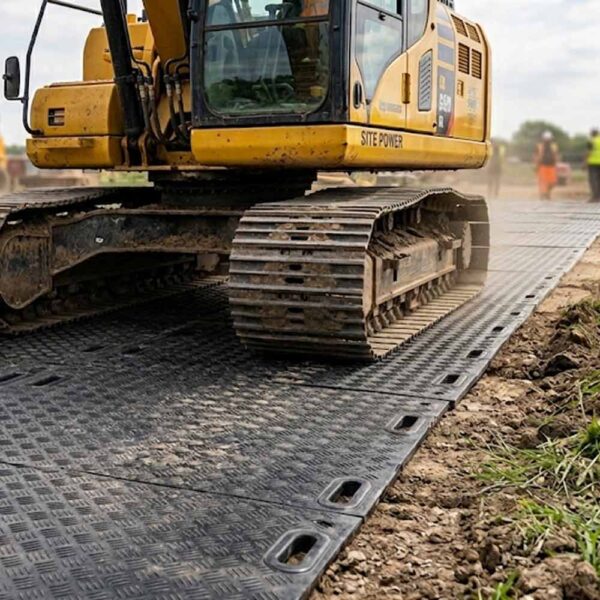

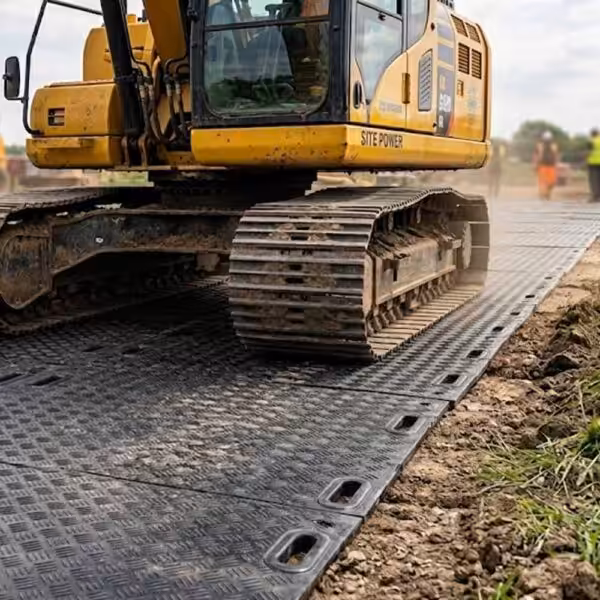

- Demolition & Heavy Plant Access: Protect soft or unmade ground from deep rutting caused by tracked diggers, heavy lorries, and site plant.
- Outdoor Events & Temporary Parking: Protect turf and soil during large outdoor markets, festivals, sporting events, and temporary parking zones.
Note: Ground beneath the matting should be as flat as possible and free from large voids or deep potholes to achieve maximum load distribution performance.
Compare the GroundShield Protection Range
Unsure which mat fits your site requirements? Compare load ratings and key specs across our full range below:
| Model | Load Capacity | Material | Connection Method | Primary Application |
|---|---|---|---|---|
| GroundShield Interlock 20 | 20 Tonnes | 100% Recycled PVC | Tool-Free Interlocking Edge | Landscaping, footpaths, light vans |
| GroundShield Access 35 | 35 Tonnes | 100% Recyclable HDPE | 2-Way / 4-Way Connectors or Cable Ties | Driveways, block paving, wheelchairs, skip lorries |
| GroundShield Trackway Pro 60 | 60 Tonnes | 100% Recyclable HDPE | 2-Way / 4-Way Connectors or Cable Ties | Construction sites, dual vehicle/pedestrian use |
| GroundShield MaxLoad 100 (this item) | 100 Tonnes | 95% Recycled Heavy PVC | 2-Way / 4-Way Connectors or Cable Ties | Heavy plant, tracked diggers, demolition |
| Size | |
|---|---|
| Pack Size | Single Tile |
Cleaning Instructions
Regular cleaning:
- Brush Clean
- Hose down or pressure wash
Specifications
| Dimensions | 1230mm x 2430mm (4′ x 8′) | 2.99m² coverage |
| Thickness / Depth | 15mm |
| Weight | 44kg per mat |
| Load Capacity | Up to 100 Tonnes (dependent on ground conditions) |
| Colour | Black |
| Construction Material | 95% Recycled PVC Plastic |
| Surface Finish | Dual Surface: 6-bar chequered plate finish on both sides |
| Connection System | Compatible with 2-way and 4-way connectors (Standard or Galvanised), or heavy-duty cable ties |
| Disability / Wheeled Access | Yes, pedestrian surface pattern is suitable for wheelchair users |
| Slip & Wear Ratings | Level 3 Excellent Slip Resistance | Level 3 Excellent Wear Resistance (Heavy Footfall & Machinery) |
| Chemical & Water Resistance | Resistant to most chemicals, grease, and oils | Water Absorption: 0.06% (ISO 62) |
| Thermal Properties | Melting Point: 121°C (ISO 11357) |
| Density & Hardness | Density: ISO 1183-2 | Surface Hardness: 32 Shore D (ISO 59) |
| Mechanical Strength | Tensile Strength: 21.9 MPa (ISO 527) | Elongation at Break: 5.3% (ISO 527) | Bending Resistance: No Break (ISO 178) |
| Impact & Compression | Compression Resistance: >58 MPa (ISO 604) | Impact Resistance: 5.55 kJ/m² (ISO 179) | Impact Elasticity: 15% (ISO 4662) |
| Electrical & Environmental | Electric Resistivity: 7.5 MΩ (ISO 257) | REACH Compliant |
