GroundShield Ground Protection Mat Connectors

GroundShield Ground Protection Mat Connectors are designed to securely join compatible ground protection mats together, helping to create a stable and continuous temporary surface.

Choose from standard, galvanised, low-profile and heavy-duty cable tie options to suit your installation.

Key features

• Suitable for compatible GroundShield ground protection mats
• 2-way and 4-way connector options available
• Standard bolt-fixed and galvanised versions
• Low-profile and heavy-duty cable tie options available
• Help minimise movement between mats
• Suitable for temporary roadways, access routes, work areas and event surfaces

Do I need connectors?

Connectors are not essential in every installation. GroundShield mats can be laid without connectors in some applications, but connectors are recommended where you want to minimise movement between mats, particularly with regular vehicle traffic or larger installations.

Which connector should I choose?

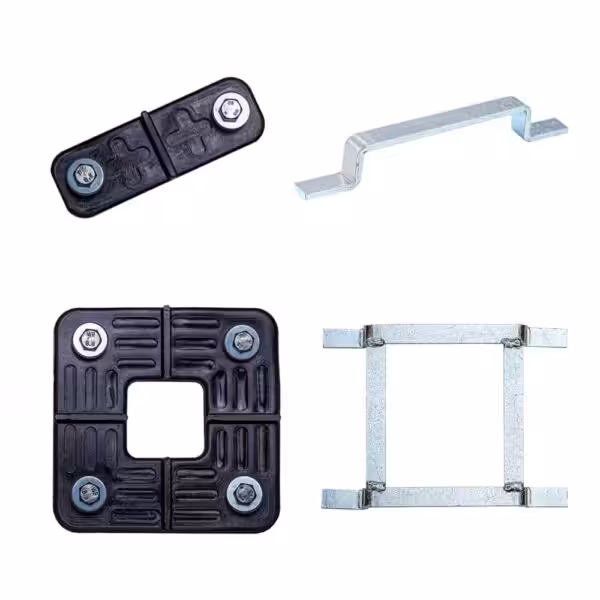

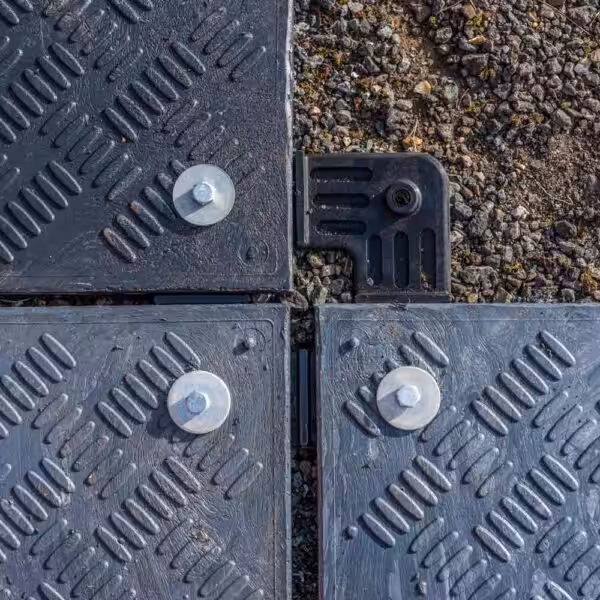

• Standard Connectors – Suitable for general applications and available in 2-way and 4-way versions. Mats are positioned over the connector and secured from above using bolts and washers.

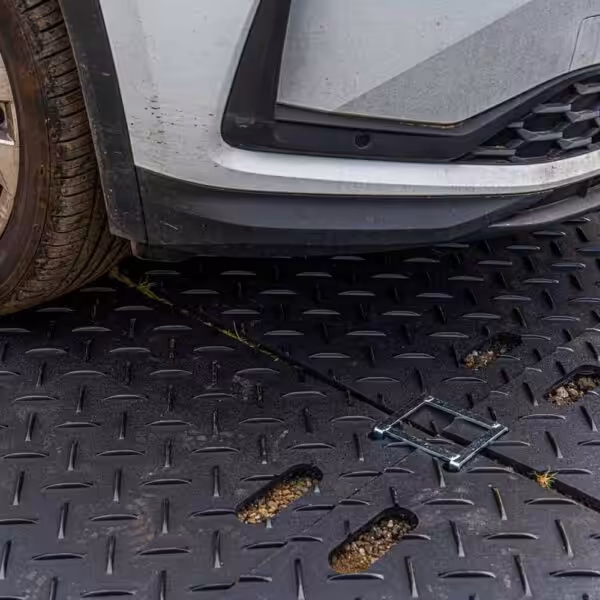

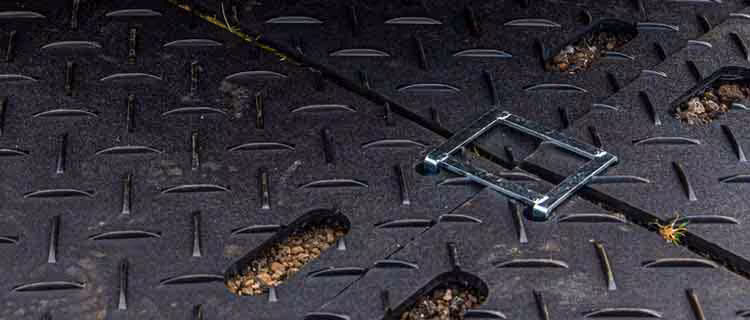

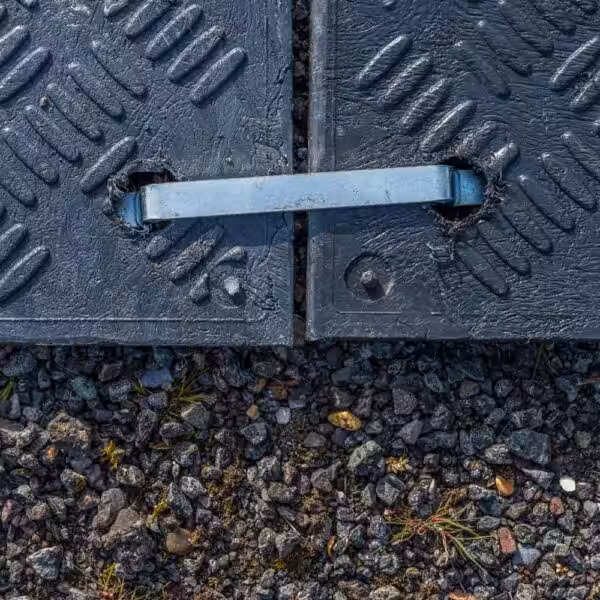

• Galvanised Connectors – Provide additional corrosion resistance and are available in 2-way and 4-way versions. The prongs locate through the mat holes, allowing quick installation without bolts or washers.
• Low Profile Connector – A 2-way connector suitable where a lower-profile connection is preferred and connector height needs to be minimised.

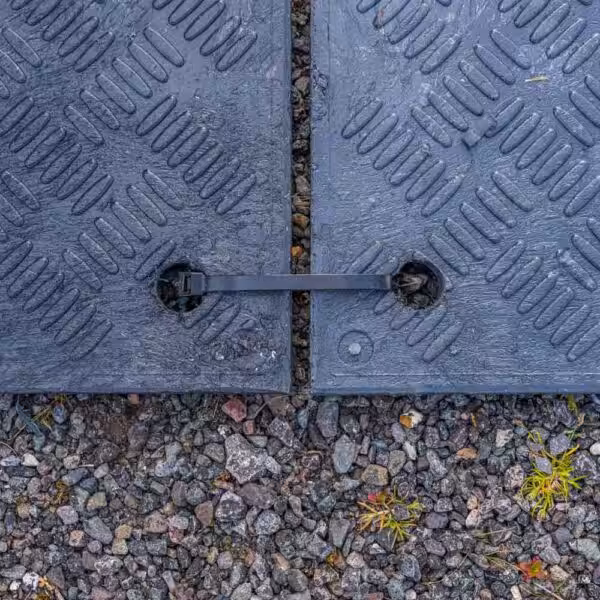

• Heavy Duty Cable Ties – Suitable for lighter-duty applications where securing the mats is the main requirement. For regular vehicle traffic or where greater restraint is required, dedicated connectors are recommended.

2-way or 4-way connectors?

Use 2-way connectors for straight runs of mats and 4-way connectors where four mats meet.

How many connectors do I need?

Six connection points per mat are recommended when fully securing all four sides, but the actual number of connectors required will depend on the number of mats, how they are arranged and the level of restraint required.

If you are unsure which connector type or quantity you need, please contact us and we will be happy to help.

Please note: Connectors are designed to secure the mats and help reduce movement. They do not increase the load rating of the mat itself.
