Electrical Safety Mats

Electrical safety mats provide a certified insulating barrier for personnel working in front of switchboards, control panels, and other high voltage equipment. Our Fine Ribbed Electrical BS EN 61111 Rubber Roll Matting conforms to IEC 61111:2009 / BS EN 61111:2009 and is available in three voltage classes โ€” Class 0 (1kV), Class 2 (17kV), and Class 4 (36kV) โ€” to suit your specific working environment. Made from durable EPDM rubber with a ribbed anti-slip surface, it is supplied in full 10m rolls or cut to your exact required length.

electrical safety matting in use

Electrical Safety Mats: Insulating Matting for High Voltage Protection

Electrical safety mats are specialist insulating floor mats designed to protect workers from electric shock in areas containing high voltage equipment. Our Fine Ribbed Electrical BS EN 61111 Rubber Roll Matting conforms to IEC 61111:2009 / BS EN 61111:2009, providing a certified insulating barrier for personnel working in front of switchboards, control panels, and other high voltage installations.

What Are Electrical Safety Mats?

Made from EPDM rubber, electrical safety mats prevent the passage of electrical current through the mat to the user โ€” a key safety component wherever personnel work on or near live high voltage equipment.

  • Certified Protection: Conforms to IEC 61111:2009 / BS EN 61111:2009 โ€” the international standard for electrical insulating matting used in work on live parts.
  • Three Voltage Classes: Available in Class 0, Class 2, and Class 4 to match your specific working voltage.
  • Colour-Coded Reverse: Each mat’s underside is colour-coded to identify its voltage class, reducing the risk of the wrong mat being used in the wrong environment.
  • Anti-Fatigue Comfort: Cushioned rubber construction provides anti-fatigue support for operatives standing at panels for extended periods.

What Are the Different Classes of Electrical Safety Mat?

Selecting the correct class for your working voltage is essential โ€” an under-rated mat will not provide adequate protection. Our Fine Ribbed Electrical Matting is available in three classes:

Class 0 โ€” 3mm
Working voltage up to 1kV, tested to 10kV. Suitable for standard industrial switchgear and lower voltage control panels.

Class 2 โ€” 4mm
Working voltage up to 17kV, tested to 30kV. Suitable for medium voltage applications including distribution switchgear and substation equipment.

Class 4 โ€” 5mm
Working voltage up to 36kV, tested to 50kV. For high voltage switchgear, transformers, and high voltage installations. Also provides the best anti-fatigue comfort underfoot.

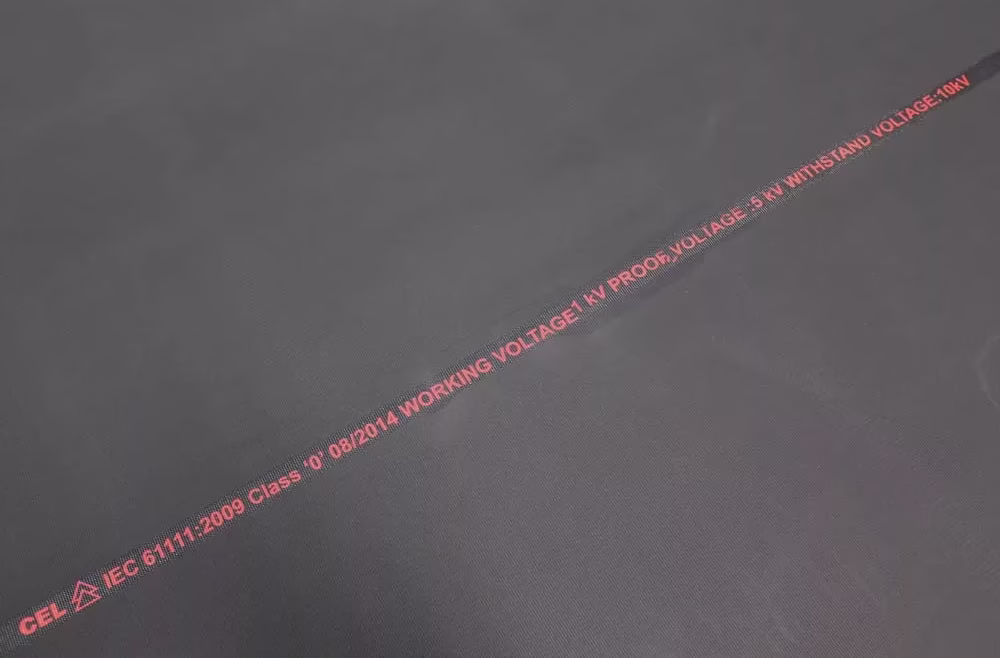

electrical safety matting class 0

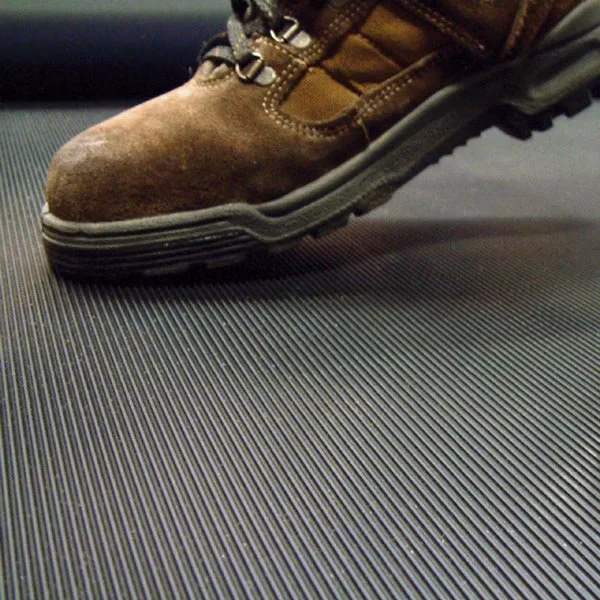

electrical safety matting close up

Where Are Electrical Safety Mats Used?

Electrical insulating mats should be placed anywhere personnel stand while working on or near live electrical equipment, including:

  • Switchboards & Control Panels: Providing an insulating surface for operators working in front of live switchgear.
  • Substations & Transformer Areas: Protecting engineers working around high voltage substation and transformer equipment.
  • Distribution Boards & Industrial Plant: During maintenance or operation of electrical distribution equipment and any environment where high voltage equipment is regularly accessed.

Why Does BS EN 61111 Certification Matter?

Uncertified matting offers no guaranteed level of protection and may not provide the insulation needed to protect against electric shock. Certified matting also supports compliance with the Electricity at Work Regulations 1989 and provides a documented, auditable standard for health and safety purposes.

How Do I Clean and Maintain Electrical Safety Mats?

Damaged or contaminated mats should be removed from service immediately. To keep mats in good condition:

  • Sweep, vacuum, or hose down regularly; use a mild detergent for thorough cleaning
  • Ensure mats are fully dry before returning to service
  • Inspect regularly for cuts, cracks, or deterioration โ€” any physical damage compromises insulating properties
  • Store rolled or flat in a clean, dry environment away from direct sunlight

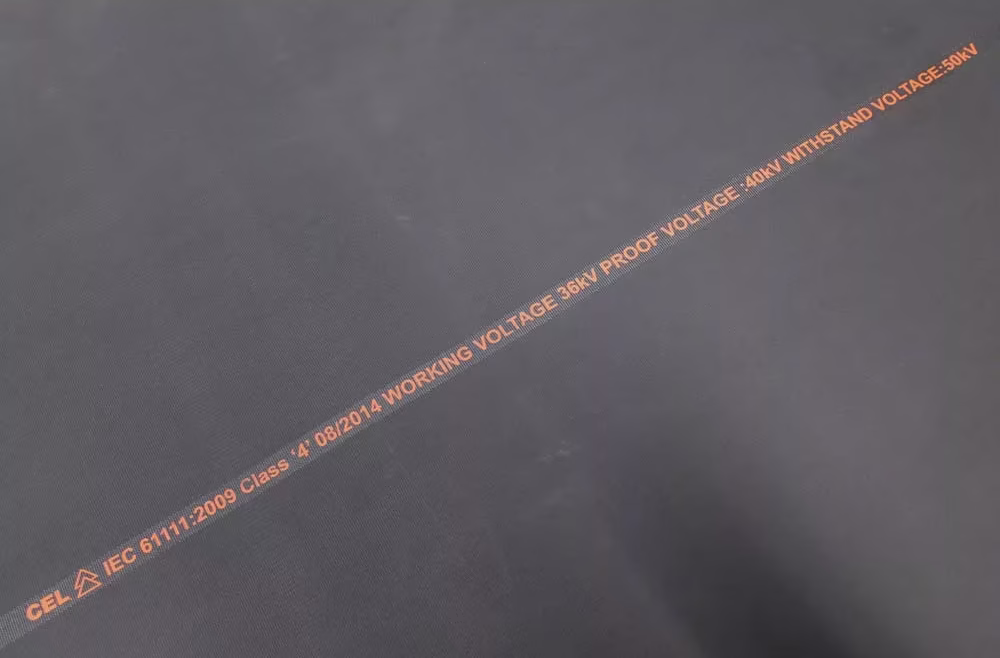

electrical safety matting class 4
Trusted Mats

Why Choose Trusted Mats for Electrical Safety Matting?

Our electrical insulating matting is certified to IEC 61111:2009 / BS EN 61111:2009 and available in all three voltage classes. Supplied as a full 10m roll or cut to your exact required length (minimum 100cm), and easily trimmed on site with a standard utility knife. Browse our Fine Ribbed Electrical BS EN 61111 Rubber Roll Matting or contact our team for guidance.
