GroundShield Trackway Pro 60 Ground Protection Mat
£164.00 incl. VAT (£136.67 excl. VAT)
- Large 120 x 240cm module size offering 2.88m² coverage per mat

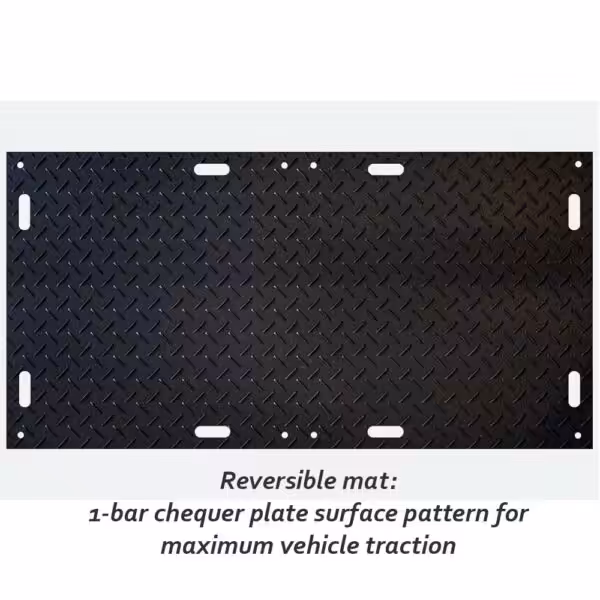

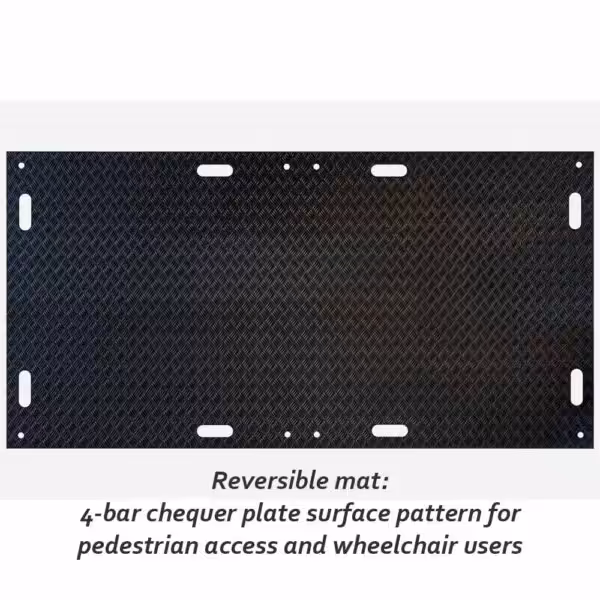

- Dual-sided design: 1-bar chequered plate vehicle surface, 4-bar pedestrian anti-slip reverse
- 60-tonne load rating protects lawns, tarmac, and soft ground from heavy machinery
- Disability-friendly pedestrian surface suitable for wheelchairs, pushchairs, and trolleys
- Built-in corner & side connector holes for 2-way/4-way link options or cable ties
- 37.5kg weight with integrated handholds for efficient two-person handling and placement
- Superior slope friction and extreme temperature resistant (-73°C to +82°C)
- 100% recyclable HDPE that will not rot, absorb water, or crack under heavy wear
Protect driveways, lawns, and site access routes with a heavy-duty, ultra-durable ground protection mat. Designed for heavy vehicles, site machinery, and pedestrian access, the GroundShield Trackway Pro 60 distributes load weights effectively to prevent rutting, turf damage, and surface cracking across soft or sensitive ground.
Key Features & Technical Advantages
- 60-Tonne Load Support: Engineered to withstand weight capacities of up to 60 tonnes, making it ideal for construction plant, heavy lorries, and site machinery.

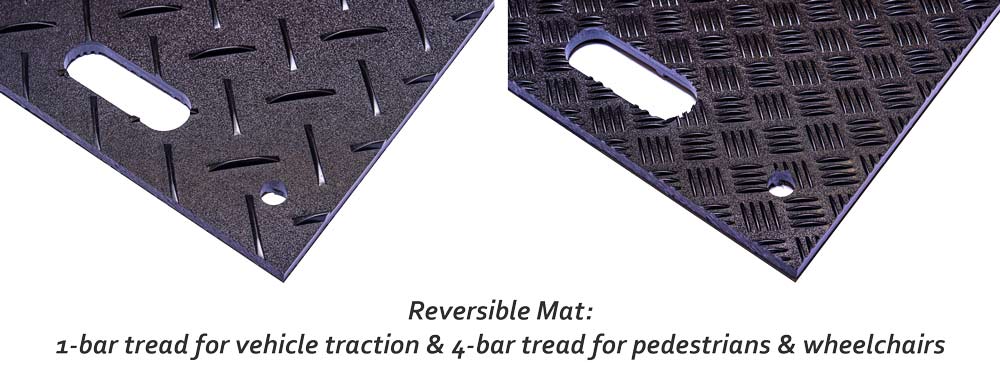

- Dual-Sided Anti-Slip Surface: Features a dual chequer plate surface pattern—1-bar for maximum vehicle traction and 4-bar for safe pedestrian access and wheelchair users.
- Superior Slope Traction: The rugged chequer plate design provides high surface friction on gradients, preventing vehicle tyre slip and ensuring secure foot placement on sloped terrain or embankments.
- Durable HDPE Construction: Manufactured from 100% recyclable High-Density Polyethylene (HDPE) that will not rot, crack, splinter, or absorb water.

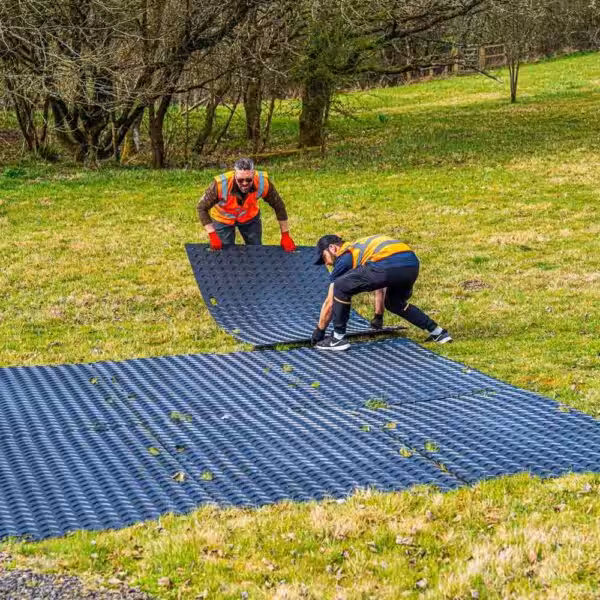

- Integrated Handholds: Features ergonomic handholds for fast, efficient two-person carrying, positioning, and loading.

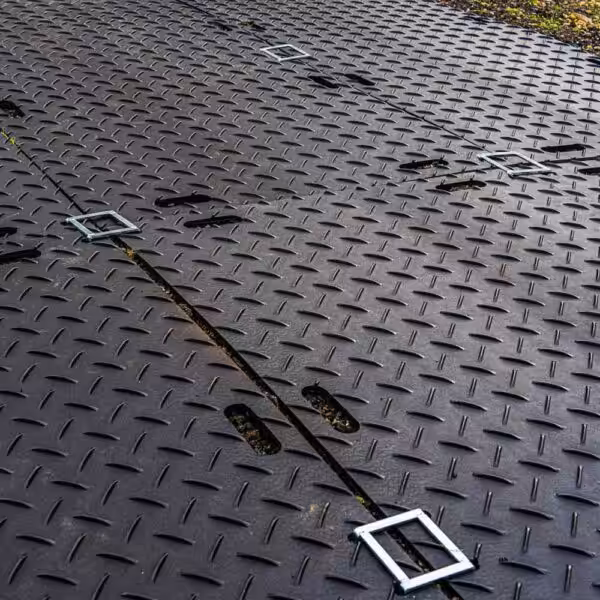

- Versatile Connection Options: Easily joined together using optional 2-way or 4-way connectors (Standard, Galvanised, or Low Profile)—or secured quickly with heavy-duty cable ties for temporary installations.
- Large 1.2m x 2.4m Sheet Size: Each mat provides 2.88m² of instant ground protection, allowing you to cover large surface areas rapidly.
- Coverage Calculator: Each tile covers 2.88m² (120cm x 240cm). Simply divide your total square meterage by 2.88 to calculate the exact number of mats needed.
Ideal Applications
- Civil Engineering & Construction Sites: Create temporary haul roads, site compound flooring, and crane or scaffolding support pads.
- Temporary Site Access Roads: Protect tarmac, block paving, and soft ground from heavy plant machinery and commercial vehicles.
- Event & Festival Ground Cover: Protect turf during large outdoor events, trade shows, pedestrian walkways, and temporary car parking.
Note: Ground beneath the matting should be as flat as possible and free from large voids to achieve maximum load distribution performance.
Compare the GroundShield Protection Range
Unsure which mat fits your site requirements? Compare load ratings and key specs across our full range below:
| Model | Load Capacity | Material | Connection Method | Primary Application |
|---|---|---|---|---|
| GroundShield Interlock 20 | 20 Tonnes | 100% Recycled PVC | Tool-Free Interlocking Edge | Landscaping, footpaths, light vans |
| GroundShield Access 35 | 35 Tonnes | 100% Recyclable HDPE | 2-Way / 4-Way Connectors or Cable Ties | Driveways, block paving, wheelchairs, skip lorries |
| GroundShield Trackway Pro 60 (this item) | 60 Tonnes | 100% Recyclable HDPE | 2-Way / 4-Way Connectors or Cable Ties | Construction sites, dual vehicle/pedestrian use |
| GroundShield MaxLoad 100 | 100 Tonnes | 95% Recycled Heavy PVC | Heavy-Duty Metal Joiners | Heavy plant, tracked diggers, demolition |
| Size | |
|---|---|
| Pack Size | Single Tile |
Cleaning Instructions
Regular cleaning:
- Brush Clean
- Hose down or pressure wash
Specifications
| Dimensions | 1200mm x 2400mm (8′ x 4′) | 2.88m² coverage[cite: 1] |
| Thickness / Depth | 12.7mm[cite: 1] |
| Weight | 37.5kg per mat[cite: 1] |
| Load Capacity | Up to 60 Tonnes (dependent on ground conditions)[cite: 1] |
| Colour | Black[cite: 1] |
| Construction Material | 100% Recyclable High-Density Polyethylene (HDPE)[cite: 1] |
| Surface Finish | Dual Surface: 4-bar chequered plate (pedestrian) / 1-bar chequered plate (vehicle)[cite: 1] |
| Connection System | Corner & side holes compatible with 2-way or 4-way connectors (Standard, Galvanised, Low Profile), or heavy-duty cable ties[cite: 1] |
| Disability / Wheeled Access | Yes, 4-bar pedestrian side surface is suitable for wheelchair users[cite: 1] |
| Slip & Wear Ratings | Level 3 Excellent Slip Resistance | Level 3 Wear Resistance (Heavy Footfall & Vehicles)[cite: 1] |
| Chemical & Water Resistance | Resistant to most chemicals, grease, and oils[cite: 1] | Water Absorption: <0.10% (ASTM D570)[cite: 1] |
| Temperature Resistance | Service Temp: -73°C to 82°C | Melting Point: 131°C (ASTM D3418) | Vicat Softening Point: 125°C (ASTM D1525) | Heat Deflection: 77°C (ASTM D648) | Brittleness Temp: -75°C (ASTM D746)[cite: 1] |
| Density | 0.96 g/cm³ (ASTM D792)[cite: 1] |
| Mechanical Properties | Hardness: 65 Shore D (ASTM D2240) | Tensile Yield: 4,000 psi (ASTM D638) | Tensile Modulus: 217,000 psi (ASTM D638) | Elongation: >700% (ASTM D638) | Dynamic CoF: 0.20-0.29[cite: 1] |
| Strength & Impact | Flexural: 210,000 psi (ASTM D790) | Compressive: 1,500 psi (ASTM D695) | Izod Impact: 3.5 ft-lb/in (ASTM D256)[cite: 1] |
| Electrical & Fire Rating | Surface Resistivity: >10¹⁴ Ω/cm (ASTM D257) | Dielectric Constant: 2.4 (ASTM D150) | Fire Rating: UL94 HB[cite: 1] |
| Environmental Standards | REACH Compliant | 100% Recyclable[cite: 1] |
