Interlock Flow Oil & Grease Resistant Rubber Tiles & Edges
From: £19.00
Versatile Interlocking anti-slip and anti-fatigue tiles with flow through holes to fit custom size and shape floor areas, made with Nitrile Rubber (35%) for excellent oil, grease and chemical resistance. Tiles can be further cut to fit any area. Optional edges for additional safety.
- Description
- Additional information
- Specifications
- Cleaning Instructions
- Installation Instructions
- Reviews (0)

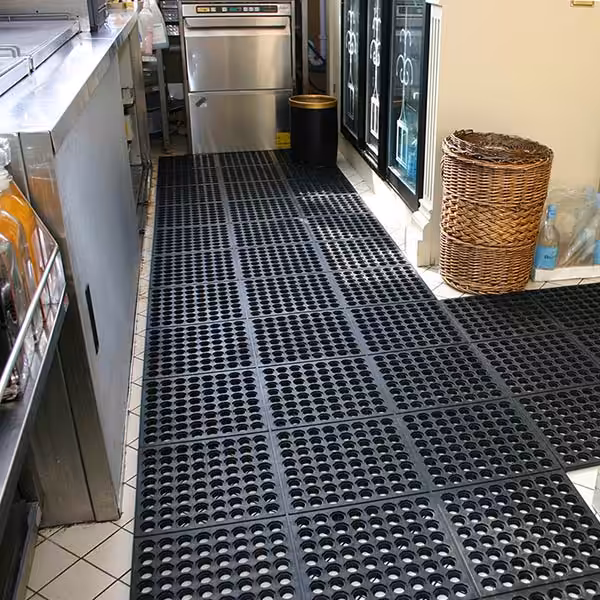

Interlocking Oil & Grease Resistant Nitrile Rubber tiles allow easy coverage of custom-sized and shaped areas with grease, oil and chemical-resistant anti-fatigue and anti-slip matting. The flow-through design makes these Interlock Flow Tiles particularly suited to wet and oily areas or areas where debris can fall through to create a safer standing surface.
These versatile tiles can be used for a multitude of uses, including anti-fatigue, anti-slip, floor protection and sound dampening. Made with a rubber blend consisting of 35% Nitrile Rubber, these tiles are ideally suited to kitchen and manufacturing environments where oil and grease will otherwise harm standard rubber mats.
Each tile measures 92 x 92cm and can be further cut to fit around furniture, fixtures or flush to walls.
Optional Nitrile Rubber bevelled edges can be attached to the tiles to reduce trip hazards or enable wheeled traffic to transition over the mats, with the yellow colour edges an additional safety option for higher visibility.
Edges measure 7.5 x 100cm and can also be used for corners. The corner section measuring 7.5 x 7.5cm can easily be cut off as required when only a straight edge is needed when fitting multiple tiles together. Female Edges fit on Male Tile connectors and vice versa.
If you need any help working out exactly what you require, please Contact Us.
Interlock Flow Oil & Grease Resistant Mats are recommended for:
- Kitchens
- Canteens
- Food processing
- Manufacturing
- Automotive
- Swarf areas
- Industrial applications
- Anti Slip
- Anti Fatigue
- Floor Protection
- Sound dampening
Explore Our Interlock Rubber Matting Tiles Range
Our range of Interlock Tiles covers a variety of needs. We have the following options available:
| Product Name | Material Composition | Surface Type | Key Features |
|---|---|---|---|
| 100% Nitrile Flow Rubber Tiles | 100% Nitrile Rubber | Flow (with holes) | Maximum resistance to grease, oil, and chemicals with drainage holes for wet/oily areas |
| 100% Nitrile Solid Rubber Tiles | 100% Nitrile Rubber | Solid (no holes) | Maximum resistance to grease, oil, and chemicals |
| (This item) Interlock Flow โ Oil & Grease Resistant (35% Nitrile) | 35% Nitrile Rubber | Flow (with holes) | Moderate resistance to grease/oil, with drainage holes |
| Interlock Flow | Standard Rubber | Flow (with holes) | Drainage holes for liquid flow and slip resistance in areas without chemicals |
| Interlock Solid | Standard Rubber | Solid (no holes) | Solid surface for dry indoor areas without chemicals |
| Part | Nitrile Flow Through Tile 92 x 92cm, Nitrile Female Edge/Corner Black, Nitrile Female Edge/Corner Yellow, Nitrile Male Edge/Corner Black, Nitrile Male Edge/Corner Yellow |
|---|
Specifications
Material: Rubber (35% Nitrile Rubber)
Pattern: Textured with Flow-through Holes
Mat height: 18mm
Hole size: 22mm
Size variation: +/-2%
Operating temperature: -20ยฐC to +130ยฐC
Slip certification: DIN 51130 – R10
Tensile Strength: 3 to 3.5 MPa
Cleaning Instructions
Regular cleaning:
- Vacuum cleaner
- Sweep
- Hose or pressure washer
Deep cleaning:
- Brush with mild detergent
Installation Instructions
Tools Required:
- Non-marking rubber mallet or standard hammer
- Sharp utility knife (e.g. Stanley knife) for trimming tiles or edges
Preparation
Before installation, ensure the matwell or floor area is thoroughly cleaned and free from dust, dirt, and debris. A clean surface helps the tiles interlock properly and sit flat.
Installation Steps
- Start in a Corner
Begin in one corner of the matwell or designated area.
Connect the first tiles together, then continue building outwards to create the required size and layout.
Tap tiles gently into place using a mallet or by hand to ensure a secure connection.
- Adding Bevelled Edges (If Required)
Interlock Flow uses two types of bevel edges: female and male. Female bevels connect to the visible interlocking side of a tile. Male bevels connect to the straight (nonโinterlocking) tile edge.
Both bevel types simply click into place to create a neat, safe ramped perimeter.
- Cutting Tiles or Bevels
Tiles and bevel edges can be easily trimmed using a sharp utility knife.
Cutting Tiles:
Use the moulded guide lines on the underside of the tile to achieve clean, accurate cuts.
Following these lines ensures the cut tile will still interlock correctly and accept bevel edges where needed.
Cutting Bevel Edges:
Attach the bevel to the tile first, then trim the bevel to create:
A straight outer edge, or
A neat mitre in corners (as typically shown in installation diagrams).
- Optional Adhesive
Superglue or similar adhesive may be used to bond tiles or bevels together, but it is not required.
The interlocking system is designed to hold securely without glue in most installations.
