Interlock Flow 100% Nitrile Rubber Tiles & Edges
From: £23.00
Heavy-duty interlocking tiles with flow-through holes, made from 100% Nitrile Rubber. Ideal for wet, oily areas. Anti-slip, anti-fatigue, and chemical-resistant.
- Description
- Additional information
- Specifications
- Cleaning Instructions
- Installation Instructions
- Reviews (0)

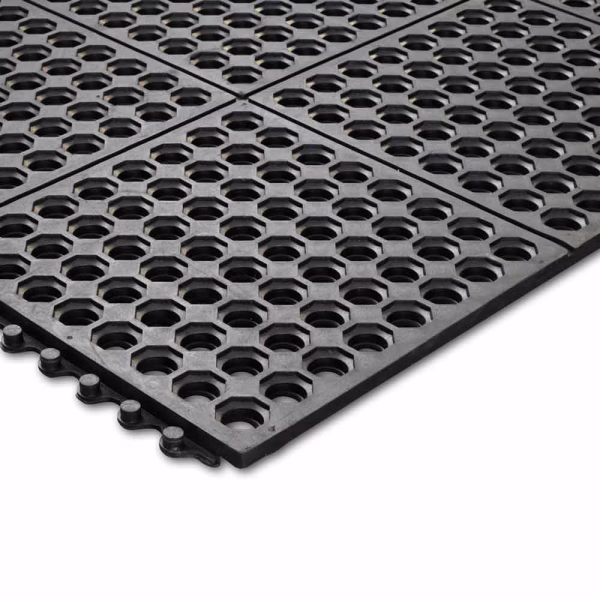

Designed for high-performance environments, our Interlock Flow Tiles are made from 100% Nitrile Rubber, offering maximum resistance to grease, oil, and chemicals. The flow-through surface features drainage holes that allow liquids and debris to pass through, helping to maintain a cleaner and safer workspace.
These tiles are ideal for wet or oily areas where slip resistance and hygiene are criticalโsuch as commercial kitchens, food prep zones, and industrial workstations. They also provide excellent anti-fatigue support for workers who stand for long periods.
Each tile measures 92 x 92cm and can be easily cut to fit around equipment, fixtures, or flush against walls for a tailored installation.

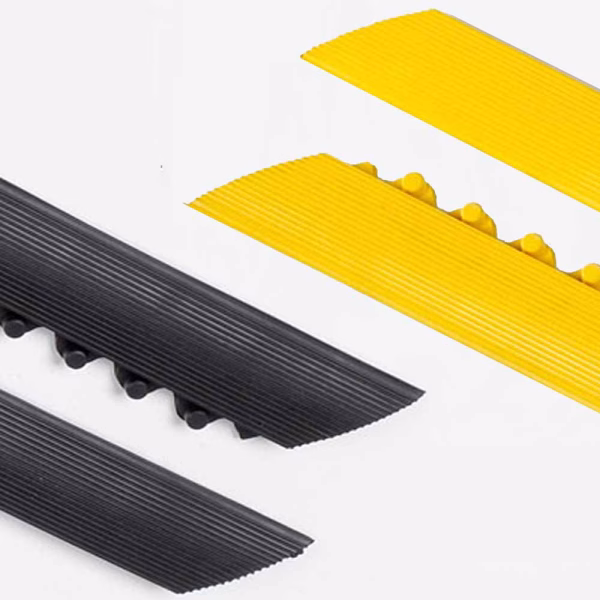

Optional Edges for Safety & Accessibility

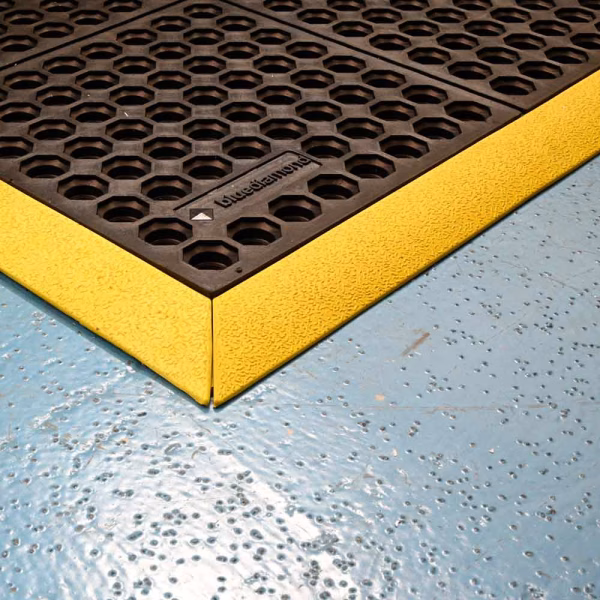

Bevelled Nitrile Rubber edges are available to reduce trip hazards and allow smooth transitions for wheeled traffic. Yellow safety edges are also available for increased visibility in busy environments.
Edges measure 5.5 x 92cm and can be used for straight edges or corners. Female edges fit male tile connectors and vice versa. Corner sections can be trimmed as needed.
Need help planning your layout or calculating quantities? Contact Us โ weโre happy to assist.
Interlock Solid Mats 100% Nitrile Rubber are recommended for:
- Commercial Kitchens
- Food Prep & Processing Areas
- Manufacturing & Industrial Workspaces
- Wet Zones & Washdown Areas
- Anti-Slip & Anti-Fatigue Applications
- Oil & Grease-Prone Environments
Explore Our Interlock Rubber Matting Tiles Range
Our range of Interlock Tiles covers a variety of needs. We have the following options available:
| Product Name | Material Composition | Surface Type | Key Features |
|---|---|---|---|
| (This item) 100% Nitrile Flow Rubber Tiles | 100% Nitrile Rubber | Flow (with holes) | Maximum resistance to grease, oil, and chemicals with drainage holes for wet/oily areas |
| 100% Nitrile Solid Rubber Tiles | 100% Nitrile Rubber | Solid (no holes) | Maximum resistance to grease, oil, and chemicals |
| Interlock Flow โ Oil & Grease Resistant (35% Nitrile) | 35% Nitrile Rubber | Flow (with holes) | Moderate resistance to grease/oil, with drainage holes |
| Interlock Flow | Standard Rubber | Flow (with holes) | Drainage holes for liquid flow and slip resistance in areas without chemicals |
| Interlock Solid | Standard Rubber | Solid (no holes) | Solid surface for dry indoor areas without chemicals |
| Part | Nitrile Flow Through Tile 92 x 92cm, Nitrile Female Edge/Corner Black, Nitrile Female Edge/Corner Yellow, Nitrile Male Edge/Corner Black, Nitrile Male Edge/Corner Yellow |
|---|
Specifications
Material: Rubber (100% Nitrile Rubber)
Pattern: Textured with Drainage Holes
Mat height: 19mm
Size variation: +/-2%
Operating temperature: -20ยฐC to +130ยฐC
Hardness: 55+ Shore A
Tensile Strength: 3 to 3.5 MPa
Elongation at break: 200-250%
Flammability rating: BS EN 13501-1 Class Efl โ S2
Cleaning Instructions
Regular cleaning:
- Vacuum cleaner
- Sweep
- Hose or pressure washer
Deep cleaning:
- Brush with mild detergent
Installation Instructions
Tools Required:
- Non-marking rubber mallet or standard hammer
- Sharp utility knife (e.g. Stanley knife) for trimming tiles or edges
Preparation
Before installation, ensure the matwell or floor area is thoroughly cleaned and free from dust, dirt, and debris. A clean surface helps the tiles interlock properly and sit flat.
Installation Steps
- Start in a Corner
Begin in one corner of the matwell or designated area.
Connect the first tiles together, then continue building outwards to create the required size and layout.
Tap tiles gently into place using a mallet or by hand to ensure a secure connection.
- Adding Bevelled Edges (If Required)
Interlock Flow uses two types of bevel edges: female and male. Female bevels connect to the visible interlocking side of a tile. Male bevels connect to the straight (nonโinterlocking) tile edge.
Both bevel types simply click into place to create a neat, safe ramped perimeter.
- Cutting Tiles or Bevels
Tiles and bevel edges can be easily trimmed using a sharp utility knife.
Cutting Tiles:
Use the moulded guide lines on the underside of the tile to achieve clean, accurate cuts.
Following these lines ensures the cut tile will still interlock correctly and accept bevel edges where needed.
Cutting Bevel Edges:
Attach the bevel to the tile first, then trim the bevel to create:
A straight outer edge, or
A neat mitre in corners (as typically shown in installation diagrams).
- Optional Adhesive
Superglue or similar adhesive may be used to bond tiles or bevels together, but it is not required.
The interlocking system is designed to hold securely without glue in most installations.
